Legrand has announced an expansion of its Cablofil product line to offer new, innovative cable dropout accessories designed to "drop cables without dropping support," as stated by the company.
The global specialist in electrical and network infrastructure solutions notes that as cable management is an essential element for keeping data centers running smoothly, one challenge contractors working within facilities encounter is how to run expansive lengths of cable without compromising the support of the wire mesh tray at the dropout location.
The new Cablofil product line extensions make it easy for contractors to select the right dropout solution for a particular site's needs by offering a spectrum of cable dropout accessories. With the new accessories, the company contends technicians can perform cable drops right where they're needed, without sacrificing strength and support for flexibility and speed.

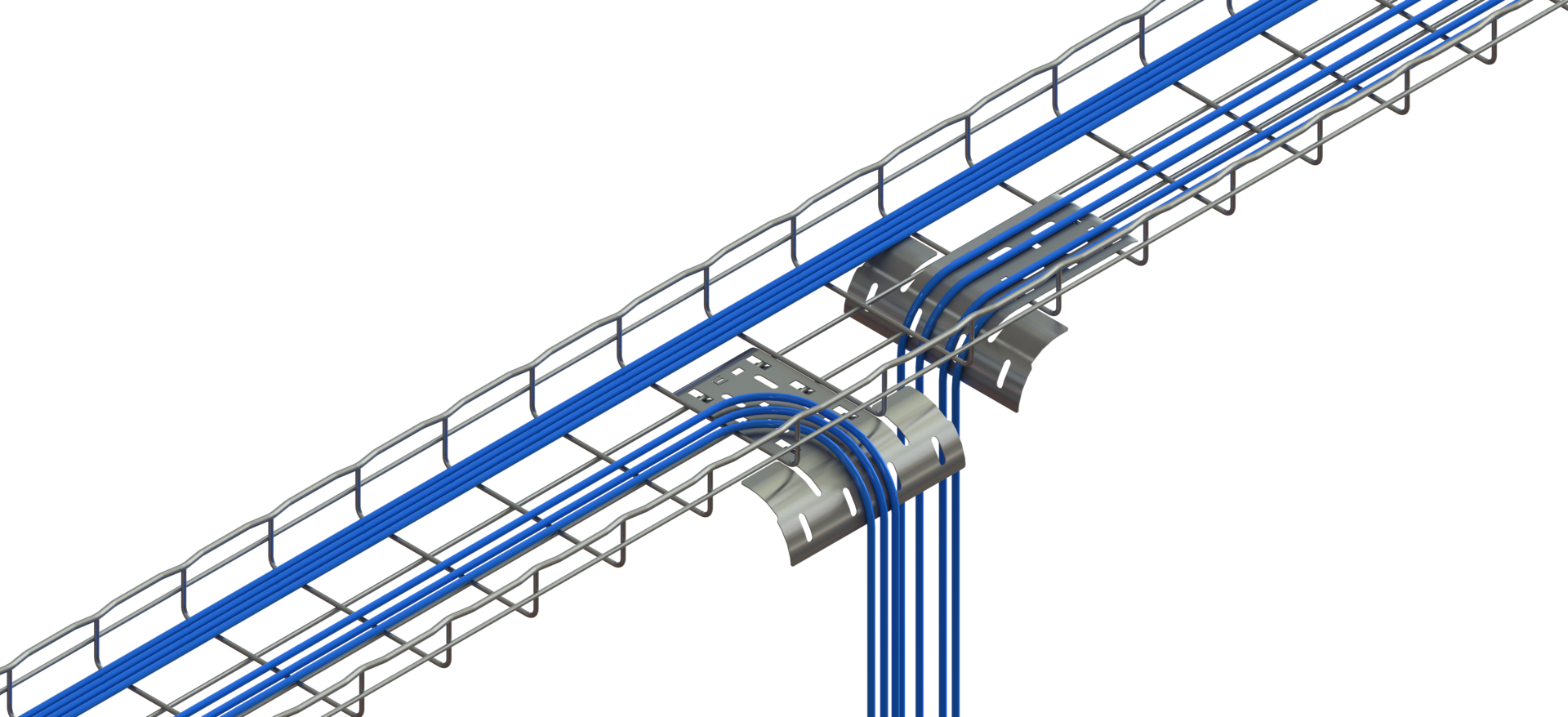

The new Cablofil data center cable dropout accessories from Legrand are billed as follows:
- "The Good" - Basic Dropout (BDO)
The Basic Dropout (BDO) smooths the transition of cabling dropping out of wire mesh tray. These dropouts snap into place without hardware and reduce the strain of cables as they exit or enter the tray. It mounts at the end of the wire basket cable tray parallel or perpendicular to the tray bottom. The 4” width capacity allows small cable bundles through the mesh. The full 90-degree drop eliminates pressure points on cables as the 2” radius reduces cable stress. Extended side wings offer extra cable support. Tie-down slots are available to assist and secure the cables as they exit the dropout.With this dropout solution, users will need to cut wires on the cable tray. The solution is compatible with all Cablofil Wire Mesh trays.
Key Attributes:
- Simple Installation
- Tie-Down Slots
- Compatible w/ Service Trays
- "The Better" - Standard Dropout (SDO)
The Standard Dropout (SDO) offers stronger cable support and creates a seamless transition for cables on the side of the wire mesh tray without any cutting. This allows users to protect cables as they exit the tray, while maintaining all the strength and support of the wire mesh. The SDO is available in 150 (6”) and 300 (12”) widths which, when used in combination, provide options for 6”, 12”, 18”, and 24”. The full 90-degree drop eliminates pressure points, while the 3” radius reduces stress on the cables. The solution is compatible with all Cablofil Wire Mesh trays by interlocking on the side wires for added rigidity. The dropout mounts over the side or at the end of the wire basket cable tray (both atop or below wire basket wires). Tie-down slots are available to assist and secure the cables as they exit the drop out. No tray cutting is required.
Key Attributes:
- Simple Installation
- Tie-Down Slots
- Compatible w/ Service Trays
- Cut-Free Installation
- Variety of Sizes
- "The Best" - Universal Dropout (UDO)
The Universal Dropout (UDO) is billed by Legrand as the premiere Cablofil dropout accessory. As the dropout with the strongest cable support, the UDO protects larger capacities of cables without compromising the strength of the cable tray. The UDO is suitable for copper, fiber-optic, or PoE cabling. As the strongest Cablofil dropout solution, the UDO makes it easy to perform cable drops directly off the side of the tray without having to make any wire tray cuts or modifications. Tie-down slots are available to assist and secure the cables as they exit the drop out. Installation slots allow for easy install directly on the edge of the wire mesh tray and makes for easy moves, changes, and reconfigurations. The UDO's 120-degree bend in two directions ensures cables do not have any potential pinch points or sharp edges. The unit's 2” tall side rails provide cable protection and organization. The part is available in a variety of finishes (electrozinc, white, and black) and sizes (8”, 12”, 18”, and 24”) to meet unique design needs.
Key Attributes:
- Simple Installation
- Tie-Down Slots
- Compatible w/ Service Trays
- Cut-Free Installation
- Variety of Sizes
- Supports Large Cable Bundles
- Safety Side Rails
