101 Series Ethernet: Back to Basics

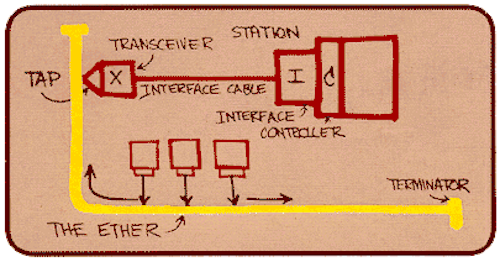

It’s been more than 40 years since Bob Metcalfe published this simple diagram explaining his invention for interconnecting computers and printers at the Xerox Palo Alto Research Center in California. His patented multipoint data connection system with collision detection later became known as Ethernet.

Since the invention of Ethernet and the ability for computers to communicate and share information, our world has changed drastically. If you’re as old as I am, you’ve seen it all come to fruition – from email and the Internet, to the mobile phone and social media. With Ethernet as the de facto choice for transmitting data, many of us may take its functionality for granted without really understanding how it works.

Ethernet sends information to and from devices in frames that commonly range in size from 64 to 1518 bytes. There are also extended (or jumbo) frames for sending greater amounts of data since processing data in one frame is more efficient than having it broken up into multiple smaller frames.

Ethernet frames include a Preamble that indicates that the frame is coming and allows the sender and receiver to establish a connection. Often considered part of the Preamble, the Start of Frame Delimiter (SFD) is a one-byte field that simply indicates the start of the frame.

Two of the most important parts of the Ethernet frame are the destination and the source addresses that contain the MAC address of the device for which the data is destined and the MAC address of the device that sent the data. MAC (Media Access Control) addresses are unique identification numbers integrated into the network interface cards of every device on the network.

The Length field of the frame simply tells the receiving device how large the frame is. The Data field holds the actual data being transmitted (also sometimes referred to as Payload). The last part of the frame is the CRC (Cyclic Redundancy Check) which includes the Frame Check Sequence used to discover any corrupted data.

From Here to There

To transmit frames from one device to another, Ethernet uses Carrier Sense, Multiple Access with Collision Detection (CSMA/CD).

In simple terms, Carrier Sense is the detection of the network and any signals being transmitted so a device knows when it’s clear to send. Multiple Access describes the fact that all devices on the network receive all the frames and check the destination address. Collision Detection is the ability for a device to recognize that it has attempted to transmit information at the same time as another device, cease transmitting and retransmit again when it’s clear to send. These retransmits use a random pause and retry to prevent devices from continuing to collide.

While Metcalfe’s first Ethernet drawing with just a few devices was quite feasible, as the number of devices trying to transmit on a single network segment increased, collisions increased, networks became congested and transmission slowed down. To reduce congestion, network segments need to be split into multiple segments that share information with each other. This is where switches come in.

Ethernet switches pick up every Ethernet transmission and forward it over the appropriate segment (i.e., link) to the destination address. This is what allows multiple devices on a network to communicate simultaneously. With Ethernet switching also came the ability to send and receive data at the same time using full-duplex Ethernet. Since devices in a modern switched network only communicate with the switch and not each other, there is no longer the need for most devices to detect collision.

Frames, Packets and Layers

When referring to Ethernet transmission, the terms frame and packet are often used interchangeably. However, they are not one and the same. Frames are used to transmit information between two nodes on the same network using MAC address, and they are generated at Layer 2 of the OSI model.  In contrast, Packets are generated at Layer 3 and are used for transmitting information between different networks.
